Incorrect selection between UL1558 and UL891 can lead to serious safety hazards!
In North American data center projects, incorrect selection of low-voltage power distribution equipment is a frequent issue—not due to poor equipment quality, but because the wrong standards are chosen.
There are two common types of mistakes. The first occurs when project teams see specifications calling for 4000A or 5000A and instinctively opt for UL1558 switchgear, doubling costs, increasing footprint, and making bids uncompetitive. The second mistake happens when teams notice that U.S. data centers commonly use UL891 distribution panels and assume they’re suitable for all applications—forcing UL891 panels onto main incoming lines or high fault-energy conditions where switchgear is required, creating hidden safety hazards.
Both errors are quite common among Chinese teams expanding overseas.
So what exactly differentiates UL891 from UL1558?
First, let’s clarify the definitions of these two standards.
UL891 applies to dead-front distribution panels with a rated voltage of 600V or less, starting at an interrupting capacity of 100kA (not 65kA or 85kA). Typical configurations include fixed molded-case circuit breakers or insulated-case circuit breakers installed in groups. Busbars are non-insulated, with specified electrical clearances but not fully insulated. Enclosures do not require mandatory compartmentalization.

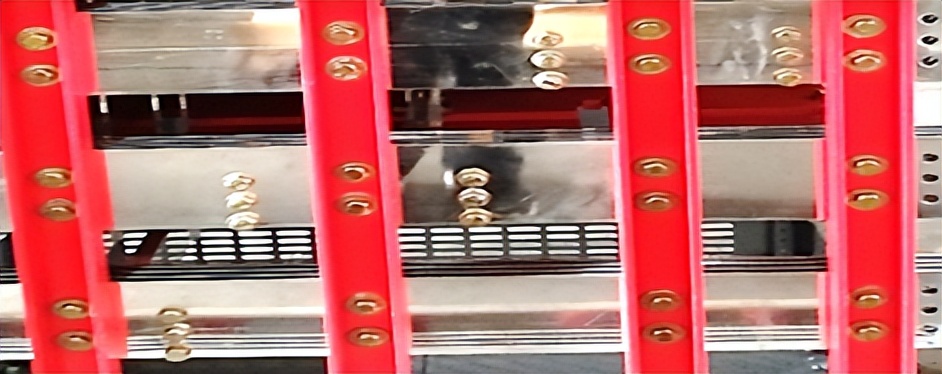

UL1558 applies to metal-enclosed low-voltage power circuit breaker switchgear with a rated voltage up to 1000V and an interrupting capacity starting at 150kA (not 85kA or 100kA). Its core feature is withdrawable low-voltage power circuit breakers, each housed in its own independent compartment. Busbars are insulated, with greater electrical clearance requirements.
The most critical difference lies in short-time withstand capability.
UL891 distribution panels must withstand short-circuit currents for only three cycles—about 50 milliseconds. In contrast, UL1558 switchgear must endure up to 30 cycles—500 milliseconds.
That‘s a tenfold difference.
What does this mean? It means that the structural design and busbar support of UL891 panels are only required to handle 50 milliseconds of fault current. If the fault duration exceeds this time, the panel structure may fail before protective devices activate. UL1558, however, can sustain 500 milliseconds, providing significantly more time for protection systems to respond.
Most distribution applications use UL891; UL1558 is reserved for specific scenarios!
Now, focusing specifically on data centers:
In most commercial and computing data centers across North America, UL891 distribution panels are used at the secondary distribution level. After the transformer’s low-voltage side, secondary distribution and feeder levels widely employ UL891. This is a mature and widely accepted solution.
UL891 panels have a maximum rated current of 6000A and can handle short-circuit currents up to 100–150kA. They typically have a depth of no more than 1.3 meters and are front-accessible for maintenance. In high-density installations, a single panel can accommodate six 1200A frame circuit breakers. These characteristics perfectly match data centers’ needs for compact layouts, high feeder density, and practical power distribution.
Then, under what circumstances should UL1558 be used? Generally, it applies when:
- The tender explicitly specifies "Switchgear," "UL1558," or "C37.20.1";
- Arc-flash protection (AR) per IEEE C37.20.7 is required for personnel safety;
- Withdrawable circuit breakers and live busbar maintenance without power interruption are needed;
- The main incoming line directly uses switchgear with extremely high fault currents;
- Upstream protection operates slowly, potentially resulting in fault-clearing times exceeding 50 milliseconds.
UL1558 switchgear is typically deployed in main incoming lines of large data centers, critical infrastructure, and heavy industrial loads. It’s not that data centers never use UL1558—it’s about knowing where it’s appropriate.
The risks associated with these two misselections are fundamentally different!
Risk One:
Using UL891 in situations where UL1558 is required
The tender explicitly required switchgear, UL1558, arc flash protection, and draw-out circuit breakers, yet the supplier substituted them with UL891.
The issue lies in fault clearing time. UL891 has only a 50-millisecond short-time withstand capability. If upstream protection coordination is inadequate and fault clearance exceeds 50 milliseconds, the cabinet structure will fail first. The large chamber without compartmentalization means arcs can spread throughout the entire enclosure. The consequences include arc splatter causing personal injury, cabinet damage, and complete busbar outage. The Authority Having Jurisdiction (AHJ) directly rejected the equipment, preventing energization and commissioning.
Even if high-performance protective relays are installed, if protection coordination is poorly designed, the cabinet structure fails before the protection system can act—making protection ineffective.
Risk Two: Using UL1558 in conventional distribution scenarios
The tender did not specify switchgear, arc flash resistance, or draw-out requirements. Yet, due to habit, UL1558 was automatically selected upon seeing high current ratings. At the same current level, UL1558 switchgear costs approximately 2 to 3 times more than UL891. It also requires larger cabinet dimensions, consuming valuable data center space. High quotes lead to lost bids, and extended delivery cycles. It‘s not that UL1558 is inferior—it‘s simply overkill for the task.
Judgment Logic: Focus on tender keywords and protection coordination
When selecting equipment, focus on a few key points:
First, examine tender keywords
If terms such as "switchgear," "UL1558," "C37.20.1," "arc-resistant (AR)," or "draw-out" appear, UL1558 must be used. If the tender mentions "switchboard" and "UL891," without AR or draw-out requirements, it indicates standard data center distribution—use UL891.
Second, evaluate protection coordination
Confirm the fault clearing time of upstream protection. If it exceeds 50 milliseconds, even if not specified by the customer, assess whether UL891 is suitable.
Third, a UL1558 label does not automatically mean the equipment is arc flash resistant
There are two common types of mistakes. The first occurs when project teams see specifications calling for 4000A or 5000A and instinctively opt for UL1558 switchgear, doubling costs, increasing footprint, and making bids uncompetitive. The second mistake happens when teams notice that U.S. data centers commonly use UL891 distribution panels and assume they’re suitable for all applications—forcing UL891 panels onto main incoming lines or high fault-energy conditions where switchgear is required, creating hidden safety hazards.
Both errors are quite common among Chinese teams expanding overseas.
So what exactly differentiates UL891 from UL1558?
First, let’s clarify the definitions of these two standards.
UL891 applies to dead-front distribution panels with a rated voltage of 600V or less, starting at an interrupting capacity of 100kA (not 65kA or 85kA). Typical configurations include fixed molded-case circuit breakers or insulated-case circuit breakers installed in groups. Busbars are non-insulated, with specified electrical clearances but not fully insulated. Enclosures do not require mandatory compartmentalization.
UL1558 applies to metal-enclosed low-voltage power circuit breaker switchgear with a rated voltage up to 1000V and an interrupting capacity starting at 150kA (not 85kA or 100kA). Its core feature is withdrawable low-voltage power circuit breakers, each housed in its own independent compartment. Busbars are insulated, with greater electrical clearance requirements.
The most critical difference lies in short-time withstand capability.
UL891 distribution panels must withstand short-circuit currents for only three cycles—about 50 milliseconds. In contrast, UL1558 switchgear must endure up to 30 cycles—500 milliseconds.
That‘s a tenfold difference.
What does this mean? It means that the structural design and busbar support of UL891 panels are only required to handle 50 milliseconds of fault current. If the fault duration exceeds this time, the panel structure may fail before protective devices activate. UL1558, however, can sustain 500 milliseconds, providing significantly more time for protection systems to respond.
Most distribution applications use UL891; UL1558 is reserved for specific scenarios!
Now, focusing specifically on data centers:
In most commercial and computing data centers across North America, UL891 distribution panels are used at the secondary distribution level. After the transformer’s low-voltage side, secondary distribution and feeder levels widely employ UL891. This is a mature and widely accepted solution.
UL891 panels have a maximum rated current of 6000A and can handle short-circuit currents up to 100–150kA. They typically have a depth of no more than 1.3 meters and are front-accessible for maintenance. In high-density installations, a single panel can accommodate six 1200A frame circuit breakers. These characteristics perfectly match data centers’ needs for compact layouts, high feeder density, and practical power distribution.
Then, under what circumstances should UL1558 be used? Generally, it applies when:
- The tender explicitly specifies "Switchgear," "UL1558," or "C37.20.1";
- Arc-flash protection (AR) per IEEE C37.20.7 is required for personnel safety;
- Withdrawable circuit breakers and live busbar maintenance without power interruption are needed;
- The main incoming line directly uses switchgear with extremely high fault currents;
- Upstream protection operates slowly, potentially resulting in fault-clearing times exceeding 50 milliseconds.
UL1558 switchgear is typically deployed in main incoming lines of large data centers, critical infrastructure, and heavy industrial loads. It’s not that data centers never use UL1558—it’s about knowing where it’s appropriate.
The risks associated with these two misselections are fundamentally different!
Risk One:
Using UL891 in situations where UL1558 is required
The tender explicitly required switchgear, UL1558, arc flash protection, and draw-out circuit breakers, yet the supplier substituted them with UL891.
The issue lies in fault clearing time. UL891 has only a 50-millisecond short-time withstand capability. If upstream protection coordination is inadequate and fault clearance exceeds 50 milliseconds, the cabinet structure will fail first. The large chamber without compartmentalization means arcs can spread throughout the entire enclosure. The consequences include arc splatter causing personal injury, cabinet damage, and complete busbar outage. The Authority Having Jurisdiction (AHJ) directly rejected the equipment, preventing energization and commissioning.
Even if high-performance protective relays are installed, if protection coordination is poorly designed, the cabinet structure fails before the protection system can act—making protection ineffective.
Risk Two: Using UL1558 in conventional distribution scenarios
The tender did not specify switchgear, arc flash resistance, or draw-out requirements. Yet, due to habit, UL1558 was automatically selected upon seeing high current ratings. At the same current level, UL1558 switchgear costs approximately 2 to 3 times more than UL891. It also requires larger cabinet dimensions, consuming valuable data center space. High quotes lead to lost bids, and extended delivery cycles. It‘s not that UL1558 is inferior—it‘s simply overkill for the task.
Judgment Logic: Focus on tender keywords and protection coordination
When selecting equipment, focus on a few key points:
First, examine tender keywords
If terms such as "switchgear," "UL1558," "C37.20.1," "arc-resistant (AR)," or "draw-out" appear, UL1558 must be used. If the tender mentions "switchboard" and "UL891," without AR or draw-out requirements, it indicates standard data center distribution—use UL891.
Second, evaluate protection coordination
Confirm the fault clearing time of upstream protection. If it exceeds 50 milliseconds, even if not specified by the customer, assess whether UL891 is suitable.
Third, a UL1558 label does not automatically mean the equipment is arc flash resistant
Arc flash performance requires dedicated design, testing, and certification. If arc resistance is required, IEEE C37.20.7 must be explicitly referenced.
